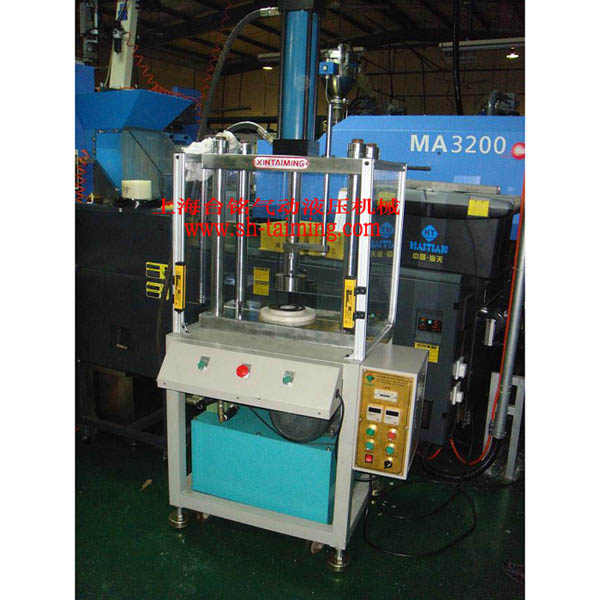

Features of TM-103 four-column and two-plate oil press:
Features:
1. It takes 1-14MPA liquid pressure as power source, connects three-phase AC380V 50HZ or three-phase AC220 60HZ AC power supply. Total power consumption is under 3.7KW.
2.The equipment takes liquid as medium to deliver energy. Speed and pressure are adjustable and controllable, large output range, and stable performance.
3.Noise is under 80db in standby.
4.Adopts four-column and two-plate design, simple structure.
5.Automatic and manual control modes.
6.Stroke is controlled by pressure switch, position sensor, or by die.
7.Rise height of principal axis is controlled by inductive switch.
8.Descent velocity of principal axis: 3tf is 78MM/S, 5tf is 68MM/S, 10tf is 68MM/S.
9. Pressure, stroke,dwell time, and shut height can be adjusted;
10.Clean and tidy appearance.
11.Automatic counting function.
12. Output range is 1T-100T.
Application:
The product is suitable for pressing fitting components and parts, correcting and riveting parts.
Output 3T 5T 10T
Working surface size 300*250 300*250 400*300
Maximum working height 250 250 300
Oil cylinder stroke 150 150 200
Axle hole size 25 25 30
Features:
Operated by double-button switch, with pressure and stroke adjustable; controlled in inching and semi-automatic way; and optional timer control or program control according to the concrete process. Easy and convenient to operate, and working reliably.
Scope of Application:
Press fitting of parts and components, calibration and riveting of parts; forming of plastic materials, like blanking, stretching and embossing of plates, as well as pressing of plastic and powder products.
